Product name：Economical CNC Video Measuring System VMS Series
Product categories：CNC Video Measuring System
Abstract：
VMS Series, an universal, economical type CNC Video Measuring System developed by Yihui.
I. Usage
VMS Series is an universal type of CNC Video Measuring System developed by Yihui.
It has been widely applied in machinery, electronics, aerospace, automotive, military, mold, and other industries for precision automatic measurement.
II. Features
1. Double closed-loop motion control, motor in high-speed movement with precise positioning performance.
2. Using the embedded modules developed to control motor, increasing motor speed accordingly, but also to simplify the instrument and the PC-interface, PC machines
and instruments through the USB line and S-Video cable.
3. Surface light source formed by an independent group of 24, each group are constant current source driver and 200-step continuous variable.
4. With my company-specific CNC software has greatly enhanced the efficiency measurement.
5. Grade 00 JINANQING granite base, column, high stability.
|
Model |
VMS-3020E |
VMS-4030E |
VMS-5040E |
Worktable |
Work Table Size(mm) |
500*330 |
606*466 |
706*566 |
|
Glass Table Size(mm) |
350*280 |
450*350 |
550*450 |
|
X,Y Stroke(mm) |
300*200 |
400*300 |
500*400 |
|
Z Stroke |
150(Focus) |
150(Focus) |
150(Focus) |
|
Resolution |
1/0.5 μm |
|
Accuracy E1* |
Ex, y ≤ (3.0+L/200) μm |
|
Accuracy E2* |
Exy ≤ (3.5+L/300) μm |
|
Instrument Weight (kg) |
270 |
450 |
500 |
|

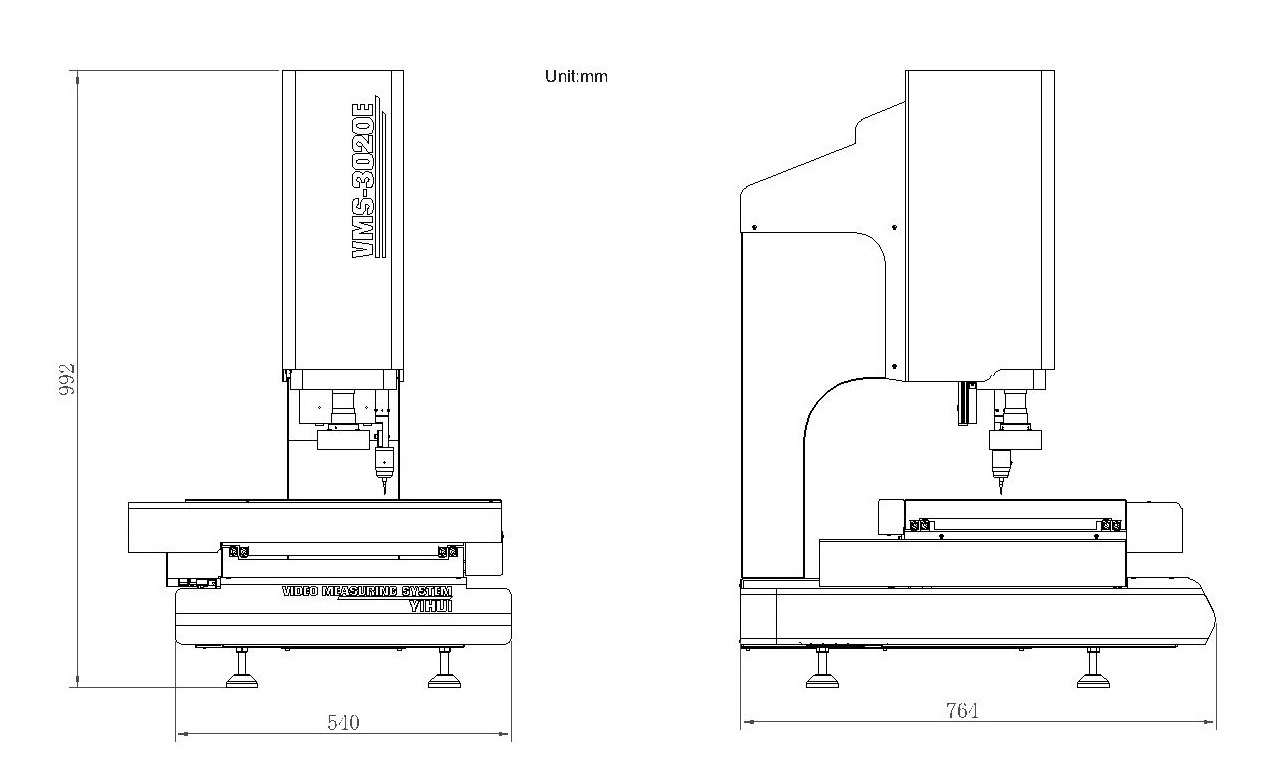

Instrument Dimension (mm) |
670*660*950 |
720*950*1020 |
800*1040*1020 |
Motor |
Three-axis Max. Velocity |
X,Y: 400mm/s Z: 200mm/s |
|
Three-axis Positioning Accuracy |
0.001 mm |
Imaging System |
Camera |
TEO™ Color 1 / 2 "CCD Camera |
|
Zoom Lens |
Manual zoom lens |
|
Zoom Lens Magnification |
0.7-4.5X |
|
Video Magnification |
20-128X |
|
FOV |
11.1-1.7mm |
|
Power Consumption |
600W |
|
Instrument Accessories |
1X Tube (standard) |
0.5X Tube (optional) |
WD |
|
Zoom Lens |
0.7-4.5X |
0.7-4.5X |
|
|
Add Lens |
Video Magnification |
FOV |
Video Magnification |
FOV |
|
0.5X(option) |
10X-64X |
22-3.4 |
5X-32X |
44-6.8 |
175 |
|
1.0X(standard) |
20X-128X |
11.1-1.7 |
10X-64X |
22-3.4 |
92 |
|
2.0X(option) |
40X-256X |
5.5-0.9 |
20X-128X |
11.1-1.7 |
36 |
* All data is tested according to Standard ISO 10360-7-2011
L is measured length (units: mm)
Specifications subject to change without notice.
