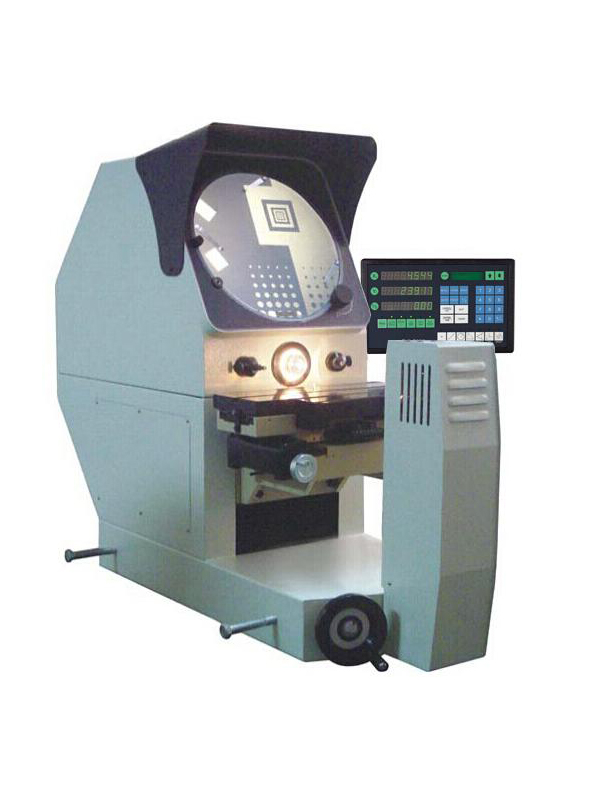

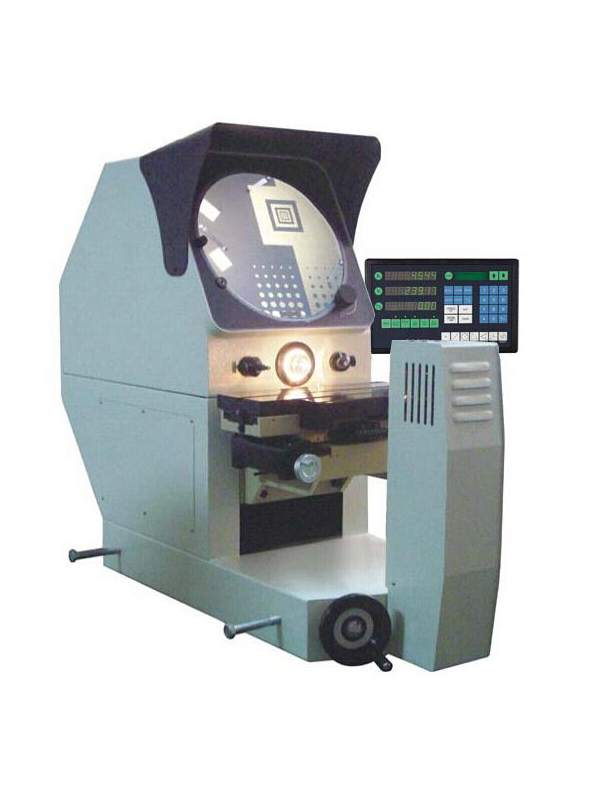

Product name：Horizontal Profile Projector CPJ-3015w
Product categories：Profile Projector
Abstract：
Usage
This Optical Profile Projector is designed for all kind of measurement in mould & die making, form tools making, screw manufacturing, gear manufacturing, electronics and pneumatic components etc.....
Usage
This Optical Profile Projector is designed for all kind of measurement in mould & die making, form tools making, screw manufacturing, gear manufacturing, electronics and pneumatic components etc.
Feature:
1. It provides accurate 2D measurement for all common geometric features such as circle, line, angle, distance, intersection points etc.
2. All measured results can be printed directly or transferred to computer for further processing.
3. Manufactured with top class components, under high standard of workmanship.
4. This kind machine achieves very high measurement accuracy.
|
Working table
|
Model
|
CPJ-4025W
|
|
Working table size(mm)
|
450*200
|
|
X-axis travel(mm)
|
250
|
|
Y-axis travel(mm)
|
150
|
|
Z-axis travel(mm)
|
100(for focus)
|
|
Turning range
|
±15°
|
|
Resolution(X-axis, Z-axis)
|
0.001mm
|
|
The indication error of coordinate(µm)
|
<=(3+L/200)
|
|
Dimension
|
L*W*H(mm)
|
1215*646*1210
|
|
Weight
|
Unit: (kg)
|
240
|
|
Projector screen
|
Screen size(mm)
|
Ø400
|
|
Screen rotary range
|
0°~360°
|
|
Rotary angle Resolution
|
1´ or 0.01°
|
|
Lens
|
Magnification
|
10X option
|
20X option
|
50X option
|
100X option
|
|
Object view(mm)
|
Ø40
|
Ø20
|
Ø8
|
Ø3
|
|
Working distance(mm)
|
103.9
|
95.1
|
65.7
|
35.0
|
|
Processor
|
DC-3000 multi-function data processing system, appearing in English.
|
|
Illumination
|
Transmission:24V/150W,cooling by fans. Reflection:1V/150W,illuminated by two fibers ,cooling by fans.
|
|
Power
|
110V/220V(AC); 50/60HZ; Total power=400W
|
|
Option
|
Mini-printer, Edge detector ,M2D software and so on
|
