I. Summary
YIHUI series coordinate measuring machine combines single-point probing and analog scanning in a single high performance measuring machine also can equipped with contact and non-contact probe system. Based on the new generation of controller combines and optimizes temperature and accuracy compensation systems and advanced algorithms to support high-speed, high-accuracy analog open and closed loop scanning.

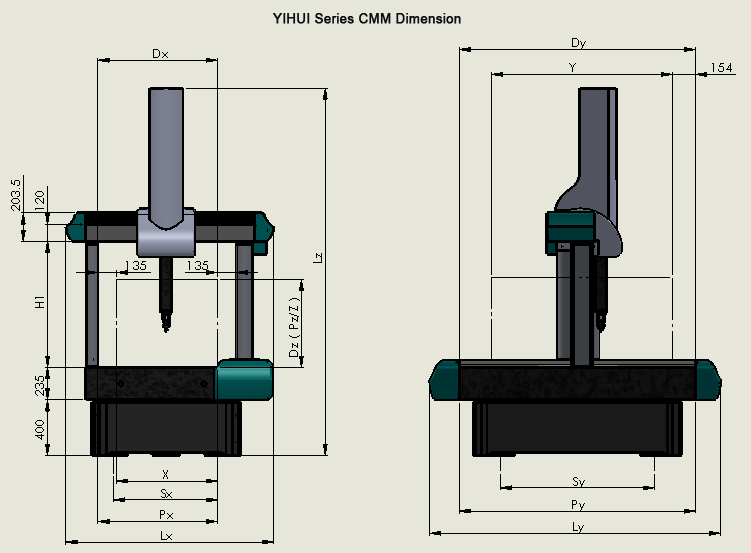

II. Design Characteristic
- Granite fixed worktable, all three axes are made of high performance granite, good temperature characteristic,have the same coefficient of thermal expansion.
- Granite worktable with integral “dovetail” guide in X axis, eliminate the pitch and yaw,also provides superior motion stability.
- Z axis air-balance with self-protection,improve motion capability.
- Advanced synchronous belt drive system with non-slip and high stiffness, ensures high stabilit, lower noise.
- High precise, rigid, and pre-loaded air bearings on all axes, can ensure the guidance never be damped
- Transmission system uses high-power DC servo motor and new double level tape reducer to ensure rapid and accurate axes movement..
- RENISHAW steel scale
- Famous parts from all over the world are used in every important sub systems
- RENISHAW0.5um RENISHAW scale and readhead,Resloution: 0.5um
- Pneumatic system made
- Synchronous belt drive system
- Pricision filter
- Full screen and high soft cable towline
