Product name：One Key Measuring System OFT Series
Product categories：CNC Video Measuring System
Abstract： OFT Series is a One Key Video Measuring System developed by DG-YIHUI.
a. 80*60mm big FOV
b. With just one key press, OK/NG result comes out.
New trend for dimension measurement.
Description
Parameter
Demo Video
Others
I. Usage
OFT Series is a One Key Video Measuring System developed by DG-YIHUI.
It has been widely used in machinery, electronics, aerospace, automotive, military, mold and other industries for precision measurement.
1. It can measure point, line, circle, arc and oval, rectangular and improve the accuracy with the multi-point positioning function.
2. In metrology terms, the machine can test and dimension width, length, height, thickness, diameter, angel, straightness, flatness, perpendicularity, circular degree, coaxiality, etc.
3. Combination of measurements, center structure and the intersection of structure, the midpoint of construction, line structure, a round structure and structural point of view.
II. Features
1. It adopts 5MP Color CCD Camera, guarantee clear image and accurate measurement.
2. Big FOV, fast measurement speed. i.e. 3D composite panel all 34 image dimensions measurement completed 1.2 seconds / film,
3D glass all 10 image dimensions measurement completed 0.34 seconds / film.
3. Small and compact body, easy to use in workshop, office.
III. Specifications
Code
04178…
003
Model
OFT-86
Glass Table Dimension(mm)
120*120
Stroke(XY, mm)
80*60
Load Capacity
approx. 5 kg
Weight (kg)
20kg

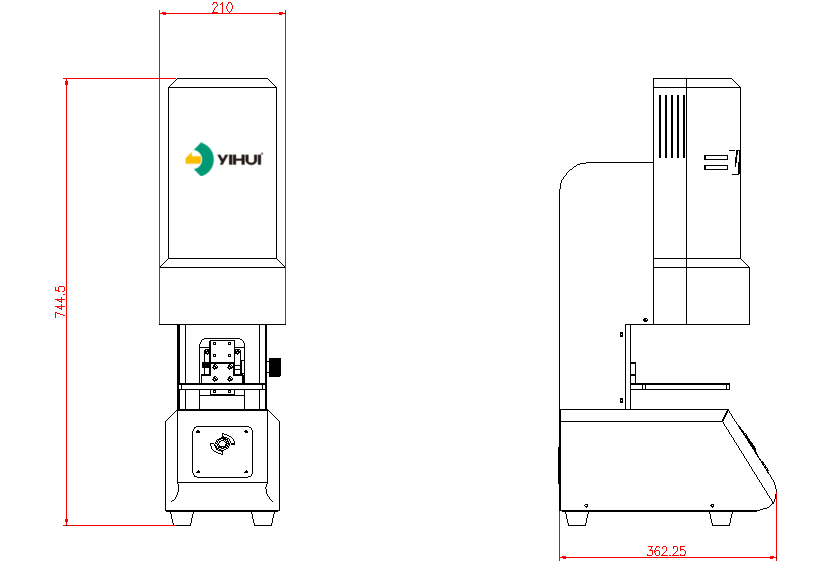

Dimension (L*W*H, mm)
210*362*745
Measuring Targeting System
(Standard Accessories)
Camera: 5MP Color CCD Camera
Zoom Lens: Telecentric Lens
Magnification of lens: 0.09 X WD: 120mm
