Product name：Large Gantry CNC Video Measuring System VMG Series
Product categories：CNC Video Measuring System
Abstract：
VMG series, sophisticated gantry CNC video measuring system developed by Yihui.
I. Usage
VMG series is latest large stroke gantry type CNC video measuring system developed by Yihui.
It adopts original imported from Japan screw drive and servo control technology, combined with our self-developed automated measurement software, it has been widely used in LCD display parts, PCB, communication device parts, sheet metal, space industry and other industries for precision auto measurement.
II. Feature
1. It adopts TEO™ 1 / 2’’ color CCD camera and professional Pomeas™ auto zoom lens, big FOV, guarantee clear image during fast moving image measurement.
2. Grade 00 JINANQING granite base, gantry structure, with German & Japanese auto-control technology, can achieve high precision motion, high stability for measuring large volume work-piece.
3. Programmable control of integrated 40 groups, 8 regional independent light sources, achieve professional surface measurement. Swift batch measurement help to cut labor cost.
4. Coupled with U.S. 2D+3D optical metrology software RationalVue™, wonderful measurement experience.
5. Option Renishaw™ touch probe & Keyence™ laser sensor available, high accuracy composite contact or non-contact 3D measurement available.
|
Model |
VMG0203 |
VMG0405 |
VMG0608 |
VMG0810 |
VMG1012 |
VMG1215 |
VMG1518 |
|
Glass Size (mm) |
300*400 |
500*600 |
700*900 |
900*1000 |
1100*1300 |
1300*1600 |
1600*1900 |
|
X,Y Stroke (mm) |
200*300 |
400*500 |
600*800*200 |
800*1000*200 |
1000*1200*200 |
1200*1500*200 |
1500*1800*200 |
|
Z Stroke(mm) |
200 |
|
Load Capacity |
approx. 35 kg |
|

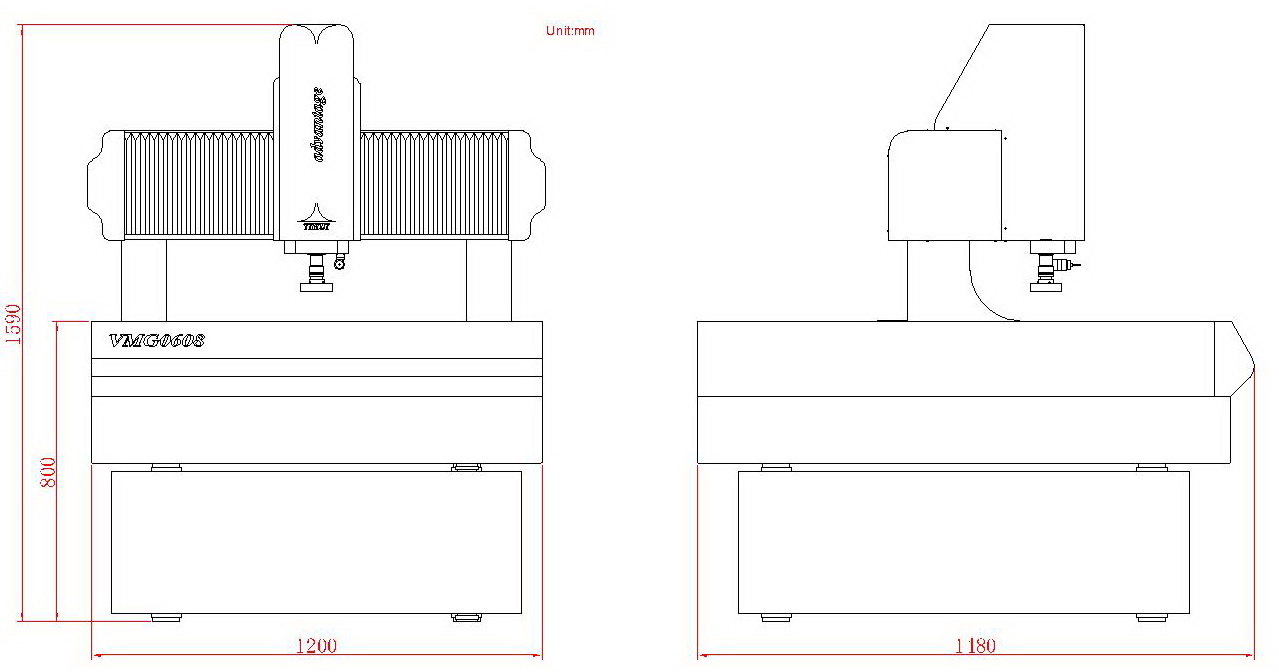

Dimension (mm) |
820*1020*1600 |
1020*1220*1600 |
1220*1520*1600 |
1420*1720*1600 |
1620*1920*1600 |
1820*2220*1600 |
2120*2520*1600 |
|
Weight(kg) |
1000 |
1250 |
1380 |
2000 |
2500 |
3000 |
4000 |
|
Resolution |
0.5/0.1μm |
|
Camera |
TEO™ 1 / 2" CCD Camera |
|
Zoom Lens |
professional auto zoom lens Zoom lens magnification: 0.7-4.5X |
|
Video Magnification |
20-128X |
|
FOV |
12.7 mm |
|
Accuracy E1* |
Ex,y ≤ (2.8+L/200)μm |
Ex,y ≤ (3.5+L/200)μm |
Ex,y ≤ (4.5+L/200)μm |
|
Accuracy E2* |
Exy ≤ (3.3+L/200)μm |
Exy ≤ (4.5+L/200)μm |
Exy ≤ (5.8+L/200)μm |
|
Illumination |
Surface and transmitted light source adopt LED, brightness adjustable |
* All data is tested according to Standard ISO 10360-7-2011
L is measured length (units: mm)
Specifications subject to change without notice
