Product name：2D+3D Composite CNC Video Measuring System VMU Series
Product categories：CNC Video Measuring System
Abstract：
VMU Series, the most advanced type of video measuring system with 2 μm precision developed by Yihui
I. Usage
VMU Series is the most advanced CNC type video measuring system with 2 μm precision developed by Yihui. It is widely applied in machinery, electronics, mould, etc. for precision auto measurement.
.
II. Features
1. It adopts TEO™ 1 / 2’’ color CCD camera and professional Pomeas™ auto zoom lens, big FOV, guarantee clear image during fast moving image measurement.
2. Grade 00 JINANQING granite base, goose-neck column, high stability structure. With German & Japanese auto-control technology, can achieve high precision motion.
3. Programmable control of integrated 40 group, 8 regional independent light sources, achieve professional surface measurement. Swift batch measurement help to cut labor cost.
4. Coupled with U.S. 2D+3D optical metrology software RationalVue™, wonderful measurement experience.
5. Option Renishaw™ touch probe & Keyence™ laser sensor available, high accuracy composite contact or non-contact 3D measurement available.
|
Model |
VMU3020 |
VMU4030 |
VMU5030 |
Worktable |
Work Table Dimension(mm) |
600*390 |
700*490 |
800*490 |
|
Glass Table Dimension(mm) |
350*250 |
450*350 |
550*350 |
|
X,Y Stroke(mm) |
300*200 |
400*300 |
500*300 |
|
Z Stroke |
200(Focus) |
200(Focus) |
200(Focus) |
|
Resolution |
0.5/0.1 μm |
|
Accuracy E1* |
Ex,y ≤ (2.0+L/200) μm |
|
Accuracy E2* |
Exy ≤ (2.3+L/200) μm |
|
Accuracy E3* |
Ez ≤ (2.5+L/100) μm |
|
Instrument Weight (kg) |
330 |
450 |
500 |
|

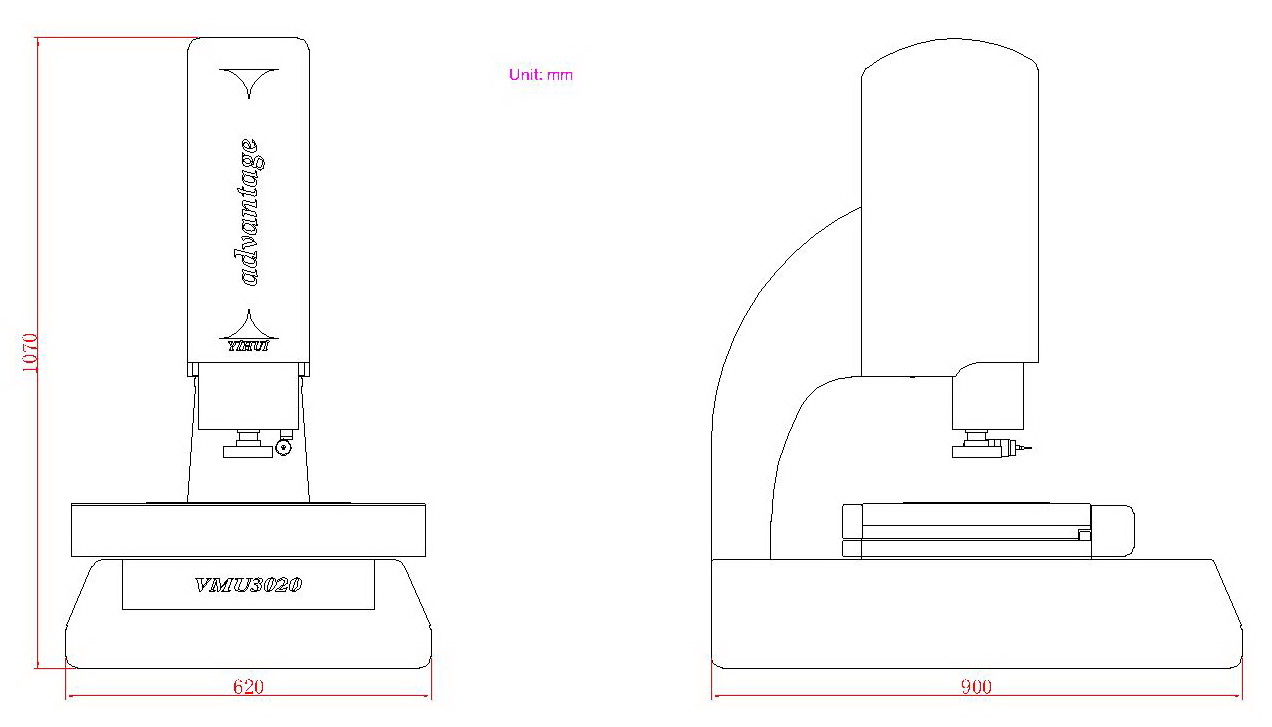

Instrument Dimension (mm) |
620*840*1020 |
720*1040*1020 |
800*1040*1020 |
Motor |
Three-axis Max. Velocity |
X,Y: 400mm/s Z: 200mm/s |
|
Three-axis Positioning Accuracy |
0.001mm |
Imaging System |
Camera |
TEO™ Color 1 / 2 "CCD Camera |
|
Zoom Lens |
Pomeas™ AUTO zoom lens |
|
Zoom Lens Magnification |
0.7-4.5X |
|
Video Magnification |
20-128X |
|
FOV |
11.1-1.7mm |
|
Power Consumption |
800W |
|
Instrument Accessories |
1X Tube (standard) |
0.5X Tube (optional) |
WD |
|
Zoom Lens |
0.7-4.5X |
0.7-4.5X |
|
|
Add Lens |
Video Magnification |
FOV |
Video Magnification |
FOV |
|
0.5X(option) |
10X-64X |
22-3.4 |
5X-32X |
44-6.8 |
175 |
|
1.0X(standard) |
20X-128X |
11.1-1.7 |
10X-64X |
22-3.4 |
92 |
|
2.0X(option) |
40X-256X |
5.5-0.9 |
20X-128X |
11.1-1.7 |
36 |
* All data is tested according to Standard ISO 10360-7-2011
L is measured length (units: mm)
Specifications subject to change without notice
